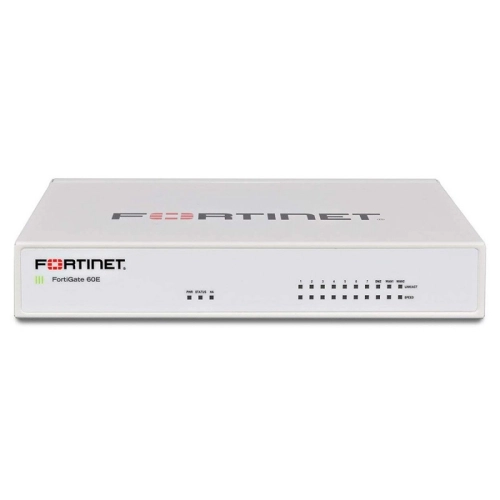

Tường lửa FortiGate-60E FG-60E-BDL-950-12 chính hãng
FortiGate-60E 10 x GE RJ45 ports (including 7 x Internal Ports, 2 x WAN Ports, 1 x DMZ Port). Hardware plus 24x7 FortiCare and FortiGuard Unified Threat Protection (UTP)
Thông số kỹ thuật FortiGate 60E FG-60E-BDL
FG-50E-BDL-950-12 Specification |
|
|---|---|
|
Interfaces and Modules |
|
| GE RJ45 Switch Ports | 5 |
| GE RJ45 WAN Ports | 2 |
| USB Ports | 1 |
| Console (RJ45) | 1 |
| Wireless Interface | |
| Internal Storage | |
|
System Performance — Enterprise Traffic Mix |
|
| IPS Throughput | 350 Mbps |
| NGFW Throughput | 220 Mbps |
| Threat Protection Throughput | 160 Mbps |
|
System Performance |
|
| Firewall Throughput | 2.5 Gbps |
| Firewall Latency (64 byte UDP Packets) | 180 μs |
| Firewall Throughput (Packet per Second) | 375 Kpps |
| Concurrent Sessions (TCP) | 1.8 Million |
| New Sessions/Second (TCP) | 21,000 |
| Firewall Policies | 5,000 |
| IPsec VPN Throughput (512 byte) | 90 Mbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 200 |
| Client-to-Gateway IPsec VPN Tunnels | 250 |
| SSL-VPN Throughput | 100 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 200 |
| SSL Inspection Throughput (IPS, avg. HTTPS) | 150 Mbps |
| SSL Inspection CPS (IPS, avg. HTTPS) | 140 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) | 75,000 |
| Application Control Throughput (HTTP 64K) | 450 Mbps |
| CAPWAP Throughput (HTTP 64K) | 1.2 Gbps |
| Virtual Domains (Default / Maximum) | 5 / 5 |
| Maximum Number of FortiSwitches Supported | 8 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 10 / 5 |
| Maximum Number of FortiTokens | 500 |
| Maximum Number of Registered FortiClients | 200 |
| High Availability Configurations | Active/Active, Active/Passive, Clustering |
|
Dimensions and Environment |
|
| Height x Width x Length | 1.44 x 8.52 x 5.5 inches
36.5 x 216 x 140 mm |
| Form Factor | Desktop |
| Power Required | 100–240V AC, 60–50 Hz (External DC Power Adapter) |
| Maximum Current | 100 V / 0.6 A, 240 V / 0.4 A |
| Power Consumption (Average / Maximum) | 15 / 18 W |
| Heat Dissipation | 62 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Humidity | 10–90% non-condensing |
| Noise Level | Fanless 0 dBA |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Compliance | FCC Part 15 Class B, C-Tick, VCCI, CE, UL/cUL, CB |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN |
